Gateway API

Luke Hebert

August 19, 2025 - 5 minutes read - 981 words

Gateway API replaces the limitations of the traditional Ingress model with a role-oriented, protocol-aware configuration mechanism that scales from a single cluster to multi-tenant cloud environments. Understanding its three core API kinds, GatewayClass, Gateway, and HTTPRoute, gives you a portable and expressive way to manage traffic routing across any Kubernetes implementation.

Overview

Gateway API is a family of API kinds that provide dynamic infrastructure provisioning and advanced traffic routing. You make network services available by using an extensible, role-oriented, protocol-aware configuration mechanism. Gateway API is an add-on containing API kinds that provide dynamic infrastructure provisioning and advanced traffic routing.

It is worth noting that many Ingress controllers are already moving to the Gateway API model and away from the Ingress controller model.

Design principles

The following principles shaped the design and architecture of Gateway API:

Role-oriented: Gateway API kinds are modeled after organizational roles that are responsible for managing Kubernetes service networking:
- Infrastructure Provider: Manages infrastructure that allows multiple isolated clusters to serve multiple tenants, e.g. a cloud provider.
- Cluster Operator: Manages clusters and is typically concerned with policies, network access, application permissions, etc.
- Application Developer: Manages an application running in a cluster and is typically concerned with application-level configuration and Service composition.
Portable: Gateway API specifications are defined as custom resources and are supported by many implementations.
Expressive: Gateway API kinds support functionality for common traffic routing use cases such as header-based matching, traffic weighting, and others that were only possible in Ingress by using custom annotations.
Extensible: Gateway allows for custom resources to be linked at various layers of the API. This makes granular customization possible at the appropriate places within the API structure.

Resource model

Gateway API has three stable API kinds:

GatewayClass: Defines a set of gateways with common configuration and managed by a controller that implements the class.
Gateway: Defines an instance of traffic handling infrastructure, such as a cloud load balancer.
HTTPRoute: Defines HTTP-specific rules for mapping traffic from a Gateway listener to a representation of backend network endpoints. These endpoints are often represented as a Service.

Gateway API is organized into different API kinds that have interdependent relationships to support the role-oriented nature of organizations. A Gateway object is associated with exactly one GatewayClass; the GatewayClass describes the gateway controller responsible for managing Gateways of this class. One or more route kinds such as HTTPRoute are then associated to Gateways. A Gateway can filter the routes that may be attached to its listeners, forming a bidirectional trust model with routes.

The following figure illustrates the relationships of the three stable Gateway API kinds:

GatewayClass

Gateways can be implemented by different controllers, often with different configurations. A Gateway must reference a GatewayClass that contains the name of the controller that implements the class.

A minimal GatewayClass example:

apiVersion: gateway.networking.k8s.io/v1
kind: GatewayClass
metadata:
  name: example-class
spec:
  controllerName: example.com/gateway-controller

In this example, a controller that has implemented Gateway API is configured to manage GatewayClasses with the controller name example.com/gateway-controller. Gateways of this class will be managed by the implementation’s controller.

See the GatewayClass reference for a full definition of this API kind.

Gateway

A Gateway describes an instance of traffic handling infrastructure. It defines a network endpoint that can be used for processing traffic, i.e. filtering, balancing, splitting, etc. for backends such as a Service. For example, a Gateway may represent a cloud load balancer or an in-cluster proxy server that is configured to accept HTTP traffic.

A minimal Gateway resource example:

apiVersion: gateway.networking.k8s.io/v1
kind: Gateway
metadata:
  name: example-gateway
spec:
  gatewayClassName: example-class
  listeners:
    - name: http
      protocol: HTTP
      port: 80

In this example, an instance of traffic handling infrastructure is programmed to listen for HTTP traffic on port 80. Since the addresses field is unspecified, an address or hostname is assigned to the Gateway by the implementation’s controller. This address is used as a network endpoint for processing traffic of backend network endpoints defined in routes.

See the Gateway reference for a full definition of this API kind.

HTTPRoute

The HTTPRoute kind specifies routing behavior of HTTP requests from a Gateway listener to backend network endpoints. For a Service backend, an implementation may represent the backend network endpoint as a Service IP or the backing EndpointSlices of the Service. An HTTPRoute represents configuration that is applied to the underlying Gateway implementation. For example, defining a new HTTPRoute may result in configuring additional traffic routes in a cloud load balancer or in-cluster proxy server.

A minimal HTTPRoute example:

apiVersion: gateway.networking.k8s.io/v1
kind: HTTPRoute
metadata:
  name: example-httproute
spec:
  parentRefs:
    - name: example-gateway
  hostnames:
    - "www.example.com"
  rules:
    - matches:
        - path:
            type: PathPrefix
            value: /login
      backendRefs:
        - name: example-svc
          port: 8080

In this example, HTTP traffic from Gateway example-gateway with the Host: header set to www.example.com and the request path specified as /login will be routed to Service example-svc on port 8080.

See the HTTPRoute reference for a full definition of this API kind.

Request flow

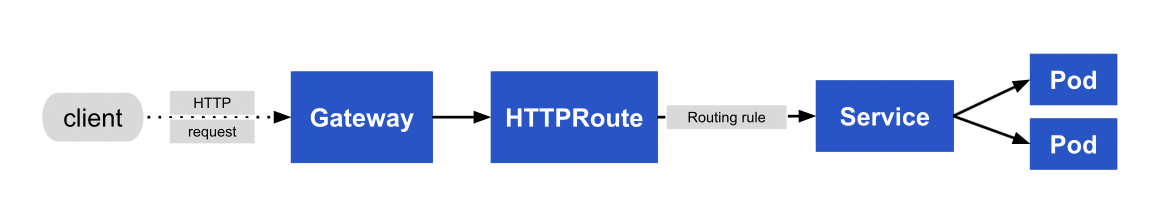

Here is a simple example of HTTP traffic being routed to a Service by using a Gateway and an HTTPRoute:

Exported image

In this example, the request flow for a Gateway implemented as a reverse proxy is:

The client starts to prepare an HTTP request for the URL http://www.example.com.
The client’s DNS resolver queries for the destination name and learns a mapping to one or more IP addresses associated with the Gateway.
The client sends a request to the Gateway IP address; the reverse proxy receives the HTTP request and uses the Host: header to match a configuration that was derived from the Gateway and attached HTTPRoute.
Optionally, the reverse proxy can perform request header and/or path matching based on match rules of the HTTPRoute.
Optionally, the reverse proxy can modify the request; for example, to add or remove headers, based on filter rules of the HTTPRoute.
Lastly, the reverse proxy forwards the request to one or more backends.
